5535 Wall Wash Light LXY-AXQD-16005

It is widely used in various places, such as riverside sight, museums, galleries, leisure squares, bridges, etc., to enhance visual effect.

1.It is a integration structure with heat dissipation and waterproof function. It is a novel structure without epoxy sealing. Compared to similar products on the market, its heat conductivity can reach 60% to 80%, which fulfills the heat dissipation requirement, lowers Lumen maintenance, and prolongs working life.

2.For the full-closed waterproof design, special silicone with high flexibility and imported rubber sealing ring with aging resistance are used in production. The waterproof class is IP67.

3.Premium aluminum profile(6063) is used in production. And anode oxidation treatment and impact-resistant tempered glass are also applied to keep a lasting bright and new lamp surface.

4.Based on site conditions, the flexible and adjustable bracket makes the beam angle more accurate and brings a more extraordinary effect.

5.According to refraction principle, professional optical design combined with high-performance optical lens makes light transmittance up to 90%. And various beam angles can be customized, creating an effect featured with high brightness and color fidelity.



Material

Aluminum Profile6063+Tempered Glass+Aluminum Bracket

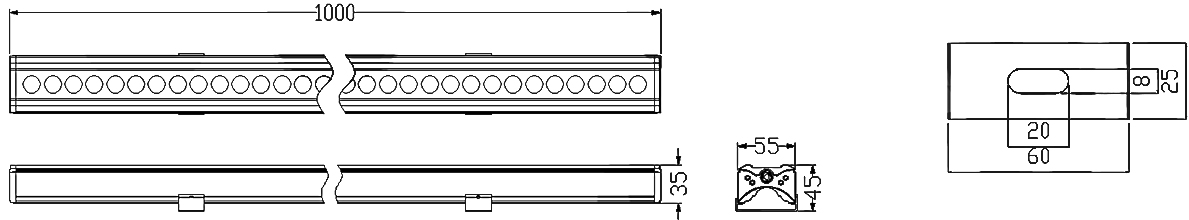

Size

55*35*1000MMOptional

CCT

RGB/Single ColorOptional

Brand of Chip

Taiwan Epistar/America Cree (optional)

LED Spec.

SMD5050/48PSC0.5W/SDM5050/96PCS

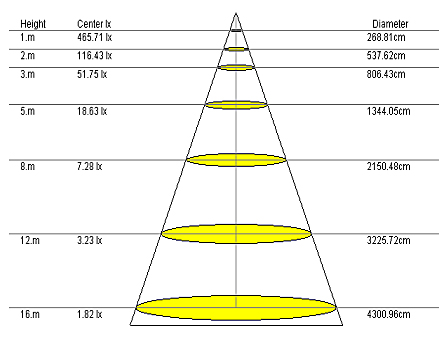

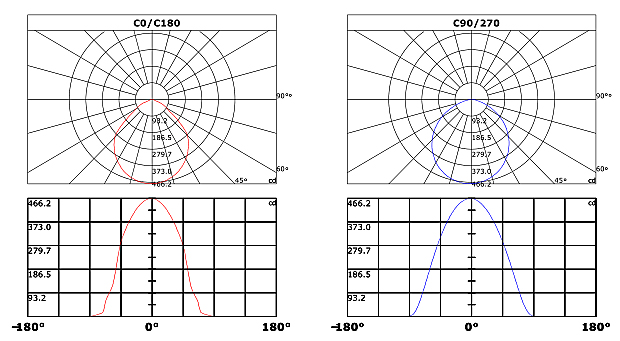

Beam Angle

30°/10*45°/120°optional

Input Voltage

DC24V

Power

24W

IP Class

IP67

Insulation Class

Ⅰ      Ⅱ

Control Mode

Internal Control   External Control

DMX512        Uncontrollable

Adjustable Angle

Non-adjustable       Adjustable

Connection

Male&Female Connector/200MM

Power Supply Installaton

Separated  Built-in  External

LM

80LM/W

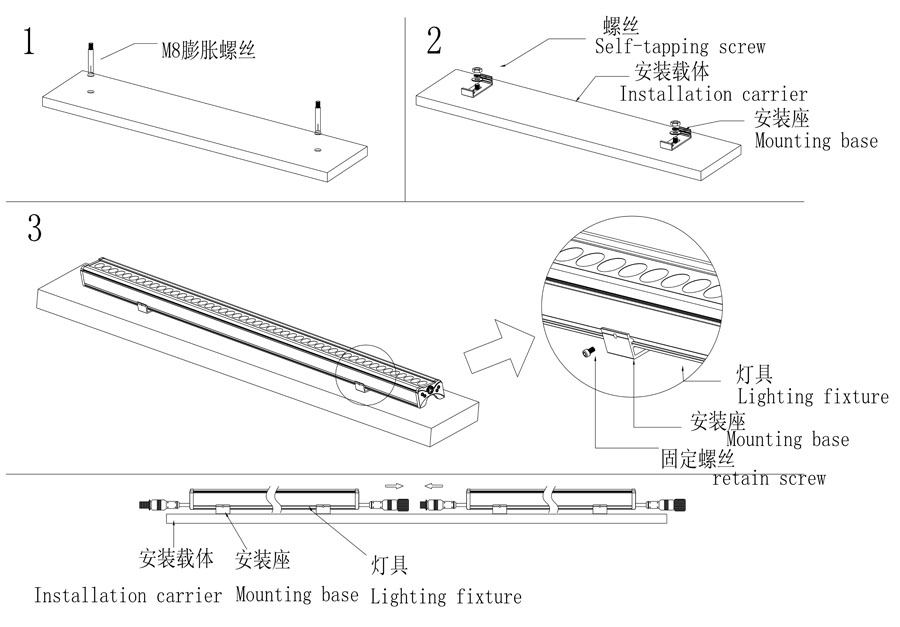

Lamp Installation

Surface-mounted  Underground    Embedded

Working Temperature

-30℃+55℃

Working Humidity

0 - 90%RH

Working Life

30000hrs

WeightKG/PCS

1.64
